Ball Valve Solutions for Critical Process Control
In critical process environments, valve failure is not just inconvenient, it is costly, unsafe, and disruptive.
Whether managing cryogenic media, corrosive chemicals, high-pressure systems, or environmental compliance requirements, your operation demands precision shut-off and long-term reliability. Accutech delivers Flowserve ball valve solutions designed to perform in the harshest conditions, combining corrosion-resistant materials, fire-safe construction, blowout-proof stem designs, and tight shut-off performance to protect your process, your people, and your uptime.
Click on image to jump to a ball valve type
Floating
Trunnion Mounted
Top Entry

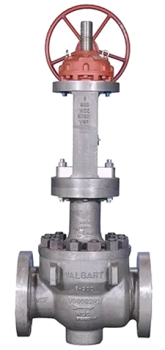

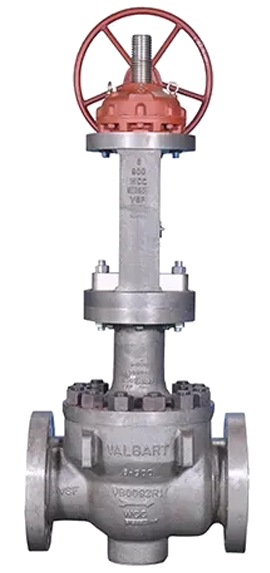

Rising Stem

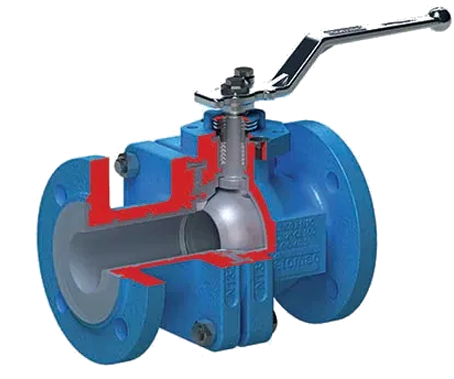

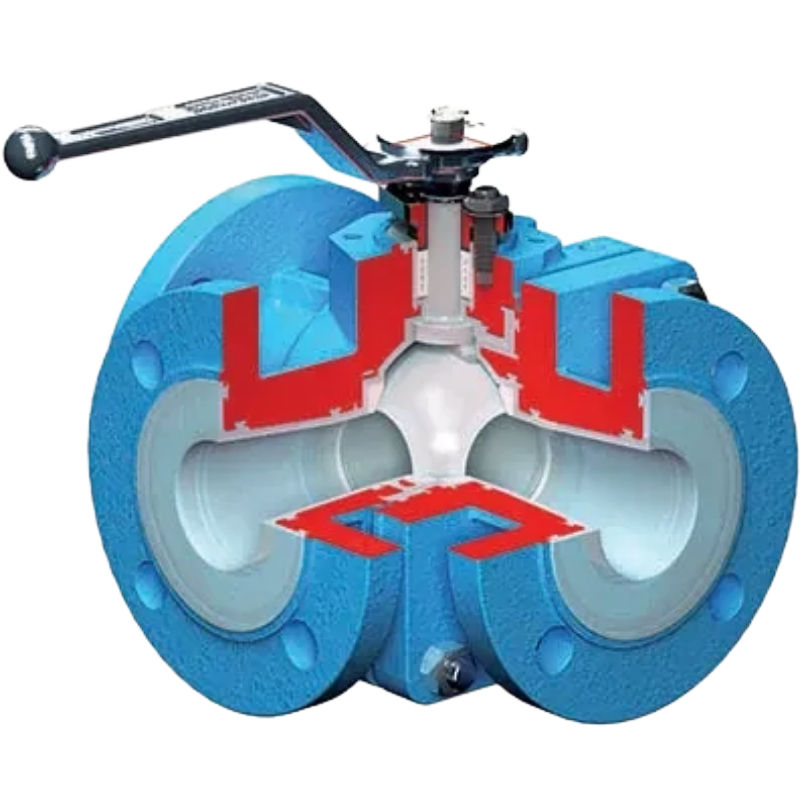

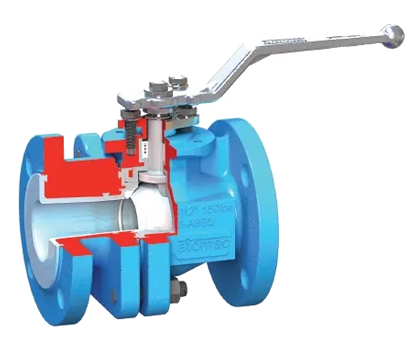

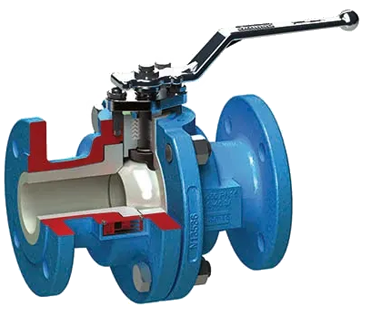

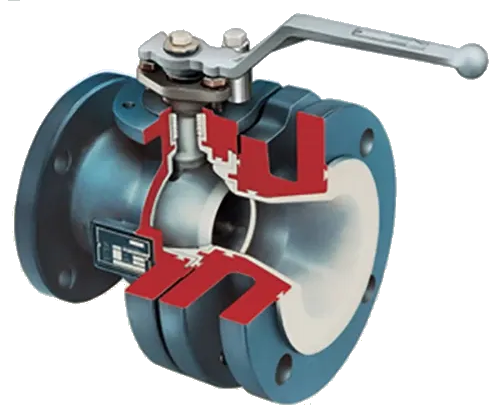

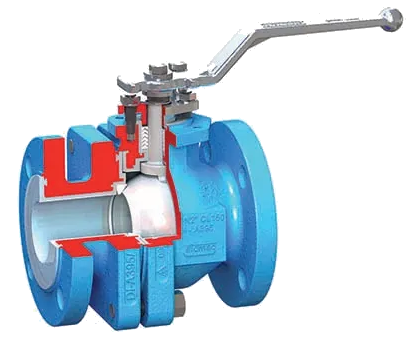

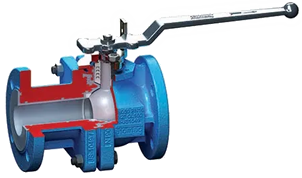

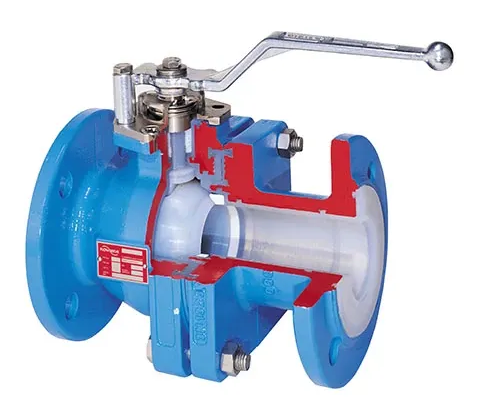

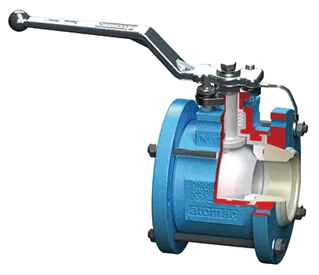

Lined
Floating Ball Valves
Floating ball valves provide reliable shutoff for process and pipeline applications where tight sealing, emission control, and durability are critical. Designed for a wide range of pressures, temperatures, and media, these valves help operators maintain containment, reduce fugitive emissions, and minimize unplanned downtime. With configurable materials, seating options, and compliance to global industry standards, floating ball valves offer a practical solution for applications that demand dependable isolation without unnecessary complexity.

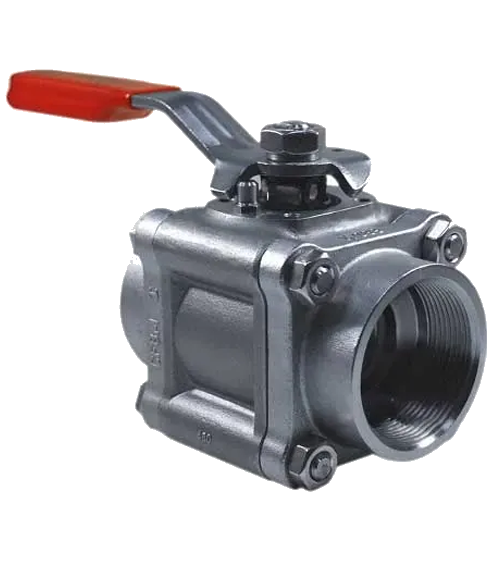

Worcester Three-Piece Floating Ball Valve
The Worcester Three-Piece ball valve line encompasses 3-piece valves built to ASME B16.34 standards. They serve general and specialized needs with various seat and seal options, delivering reliable shutoff performance and long service life over a wide pressure range.
- Special build configurations to meet customers application
ASME B16.34 compliant
Fire-safe per API 607
ISO 15848 fugitive emission compliant
Three-piece body for inline maintenance
Full port design
Class 150–600
Chemicals (Basic (Organic & Inorganic), Biofuels, Pharmaceutical, Specialty (Fine & Consumer))
General Industries (Corn Wet Milling & Ethanol, Food & Beverage, Other Industries, Pulp & Paper, Steel & Primary Metals)
Mining
Oil & Gas (Downstream Processing)
Power (Biomass & MSW, Combined Cycle, Concentrated Solar Power (CSP), Conventional Steam, Geothermal)
Water (Agriculture & Irrigation, Flood Control System, Wastewater, Water Management)

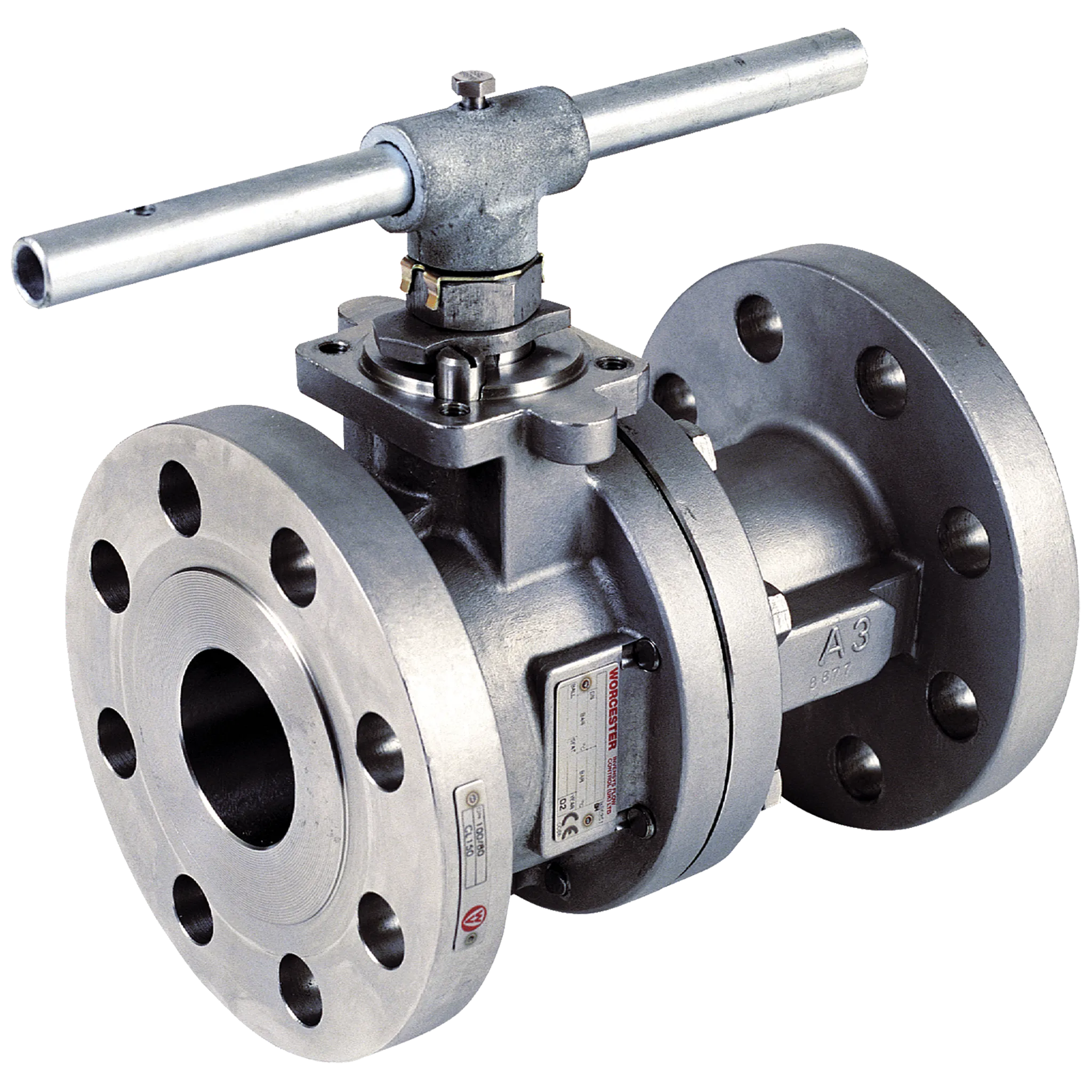

Worcester Full Port Flanged Floating Ball Valve
A full-port flanged floating ball valve providing high flow capacity and bidirectional shutoff for industrial applications.
ASME B16.34 compliant
API 607 fire-safe
ISO 15848 fugitive emission compliant
Full bore design
Pressure Class Range:PN 50; up to Class 300
Temperature range −196°C to 300°C
Chemicals (Basic (Organic & Inorganic), Biofuels, Pharmaceutical, Specialty (Fine & Consumer))
General Industries (Corn Wet Milling & Ethanol, Food & Beverage, Other Industries, Pulp & Paper, Steel & Primary Metals)
Mining
Oil & Gas (Downstream Processing)
Power (Biomass & MSW, Combined Cycle, Concentrated Solar Power (CSP), Conventional Steam, Geothermal)
Water (Agriculture & Irrigation, Flood Control System, Wastewater, Water Management)

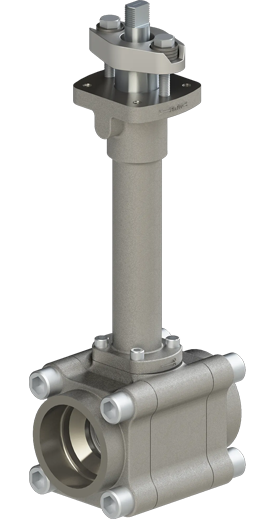

Worcester Cryogenic Three-Piece and Flanged Ball Valve
A Worcester cryogenic ball valve line designed for low-temperature service where reliable sealing and stem packing protection are required. Offered in three-piece and flanged configurations for installation flexibility.
Cryogenic-capable design for very low-temperature service
Extended bonnet configuration to protect stem packing from cryogenic temperatures
Available in three-piece and flanged end configurations
Fire-safe certified to API 607 and ISO 10497
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Oil & Gas (Hydrogen, Liquefied Natural Gas, Downstream Processing)
General Industries (Steel & Primary Metals, Food & Beverage, Other Industries)

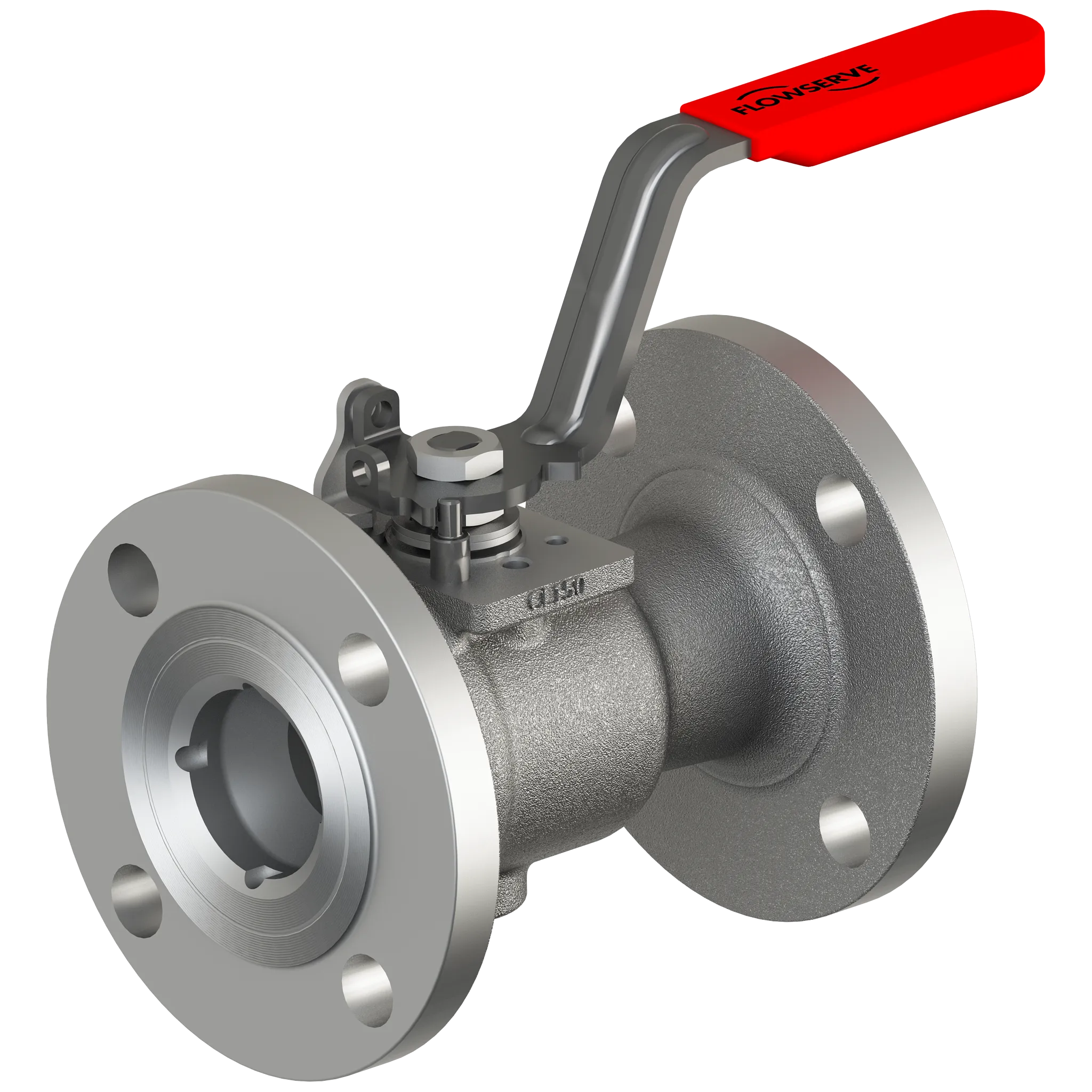

Worcester RP Flanged Floating Ball Valve
A reduced-port flanged floating ball valve designed for compact installations while maintaining reliable shutoff performance.
- Special build configurations to meet customers application
- Bubble tight shutoff with bi-directional flow provides process flexibility
- Low operating torques allowing for compact actuator operation reducing space and cost requirements”
Chemicals (Basic (Organic & Inorganic), Biofuels, Pharmaceutical, Specialty (Fine & Consumer))
General Industries (Corn Wet Milling & Ethanol, Food & Beverage, Other Industries, Pulp & Paper, Steel & Primary Metals)
Mining
Oil & Gas (Downstream Processing)
Power (Biomass & MSW, Combined Cycle, Concentrated Solar Power (CSP), Conventional Steam, Geothermal)
Water (Agriculture & Irrigation, Flood Control System, Wastewater, Water Management)

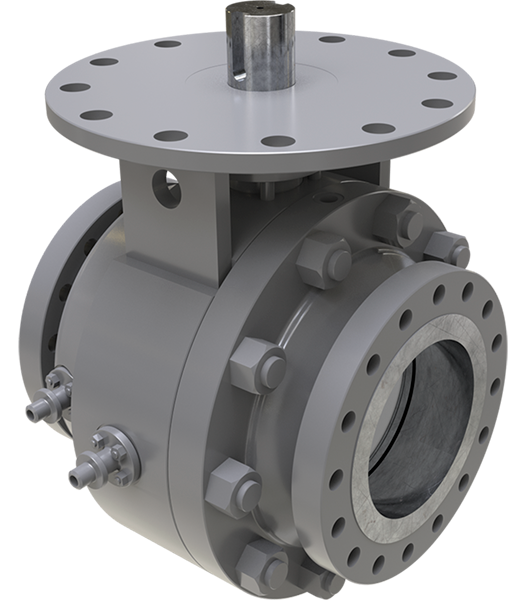

MOGAS C-Series Customizable Isolation Valve
A severe-service floating ball valve engineered for extreme temperature, high pressure, abrasive, and solids-laden applications. Each valve is custom designed to meet specific operating conditions and process requirements.
Designed for temperatures up to 900°C (1652°F)
Pressure capability up to 2965 bar g (43,000 psig)
Available in full or reduced bore configurations
Live-loaded stem packing
Pressure-energized body gasket system
Application-specific materials, coatings, liners, and inlays
Multiple end connection options (flanged, welded, clamp, RTJ)
Power
Chemicals
Mining
Oil & Gas

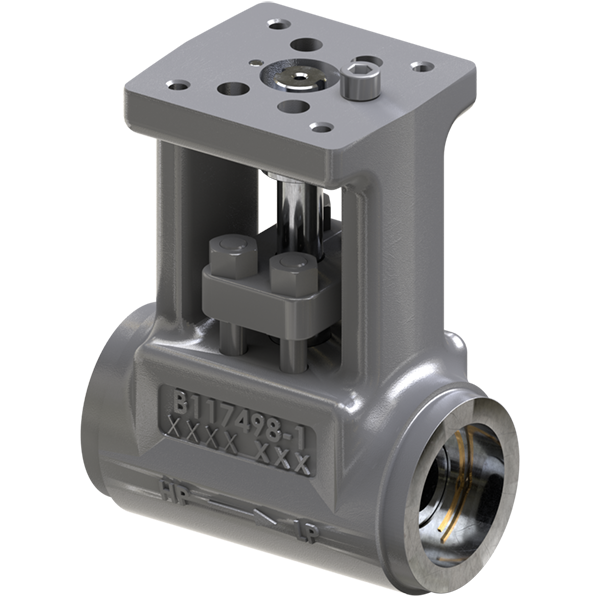

MOGAS iRSVP Isolation Valve
A metal-seated floating isolation valve designed for high-pressure, high-temperature drain and vent service in power generation applications.
Patented non-rotating rising stem mechanism
Integral vented body for weld installation
Live-loaded stem packing
Lockout-capable handle
ASME B16.34 compliant
MSS SP-101 actuator mounting
Available in limited ASME Classes 600–4500
Power

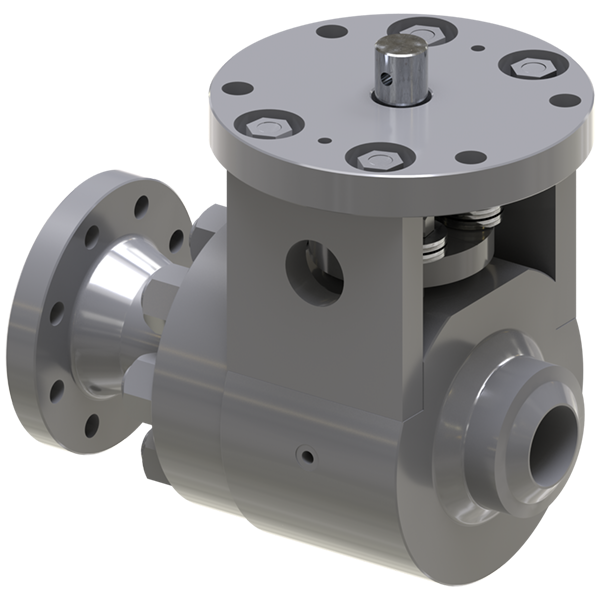

MOGAS Power Operated Relief Valve (PORV)
A compact metal-seated floating ball valve designed for small-bore, high-pressure drain and vent isolation in power plants.
Pneumatic Actuation System — Actuated relief operation for precise, repeatable pressure control.
ASME “V” Stamp Option — Available with National Board flow certification for critical boiler and pressure vessel applications.
Live-Loaded Packing — Minimizes emissions and maintains tight sealing under severe temperature conditions.
High-Performance Materials — Nickel alloy-based ball and seat with protective coatings improve wear resistance and longevity.
Quick-Acting Pneumatic Actuator — Reduces wear on sealing surfaces through faster actuation.
Field-Repairable Construction — Designed for in-place serviceability to reduce downtime.
The PORV platform is well-suited for applications where controlled pressure relief and equipment protection are mission-critical, including:
Power Generation — Protection of boilers, superheater headers, and steam systems.
Oil & Gas Processing — Overpressure mitigation in high-pressure piping and heat-transfer systems.
- Chemical & Petrochemical Plants — Relief of process pressure surges where safety and uptime are paramount.
Refining / Heavy Industry — Service in environments with frequent pressure fluctuations.
MOGAS RSVP-UK Valve
A compact metal-seated floating ball valve designed for small-bore, high-pressure drain and vent isolation in power plants.
Mate-lapped ball and seat
Spring-loaded seat design
Live-loaded packing
Anti-blowout stem
Mechanical travel stop
ASME Classes 600, 900, 1500 (limited class)
- Power

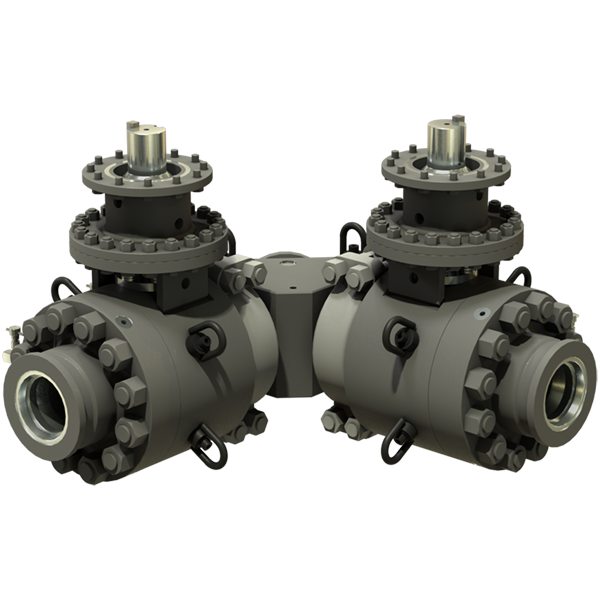

MOGAS Max Series Floating Ball Valve
A custom-engineered floating ball valve platform developed for non-standard severe service applications requiring specialized materials, bore sizes, or configurations.
Application-specific engineering
Available in Y-pattern and linked valve configurations
Full or reduced bore designs
ASME Classes 150–4500
Custom materials and hardfacing options
Oil & Gas
Chemicals
Power

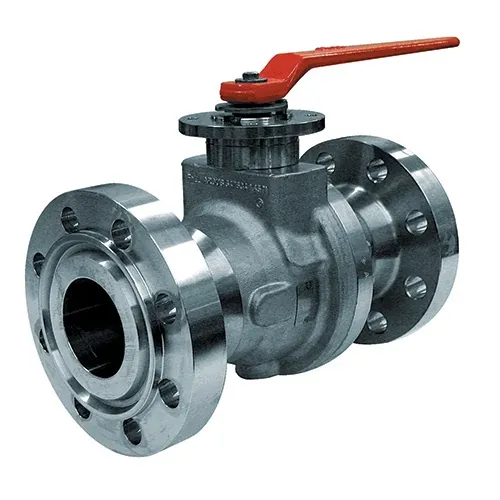

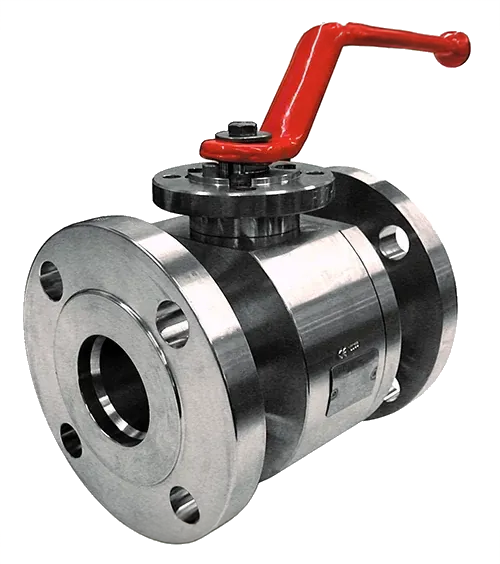

Argus™ FK75M Floating Ball Valve
A split-body floating ball valve designed for high-performance industrial service requiring low emissions and reliable shutoff.
- Increased uptime and durability from robust design with chemical coating and high-performance cladding
ASME B16.34 and API 6D compliant
Fire-safe per API 607 / ISO 10497
ISO 15848 fugitive emission compliant
FCI 70-2 Class VI shutoff
Soft or metal seated options
- Anti-static: DIN EN ISO 17292
Power (Nuclear, Conventional Steam, Combined Cycle, Biomass & MSW, Geothermal)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Water (Water Management, Wastewater, Agriculture & Irrigation, Flood Control System)
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Mining
Argus™ FK79 Floating Ball Valve
A reduced-bore floating ball valve designed for severe service environments requiring high temperature and pressure capability.
ASME B16.34 and API 6D compliant
ISO 15848 fugitive emission compliant
Fire-safe per API 607
FCI 70-2 Class VI shutoff
Temperature range −105°C to 1202°C
Class 150–2500
Power (Nuclear, Conventional Steam, Combined Cycle, Biomass & MSW, Geothermal)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Mining
Water (Water Management, Wastewater, Agriculture & Irrigation, Flood Control System)
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)

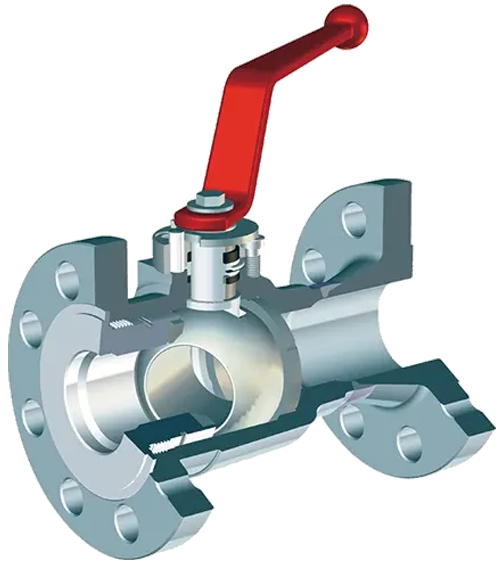

Argus™ EK71 Floating Ball Valve
The Argus™ EK71 is an end-entry ball valve for the oil and gas industry to prevent losses from production or material leakage. It is designed to meet API-6D, ANSI 16.34 and BS 5351 requirements.
API 6D design
Fire-safe per API 607
ISO 15848 fugitive emission compliant
PTFE seated
Anti-static design: DIN EN ISO 17292
ASME Class 150–600
General Industries (Other Industries)
Oil & Gas (Midstream Transportation, Downstream Processing)
Power (Nuclear, Conventional Steam, Geothermal, Combined Cycle)

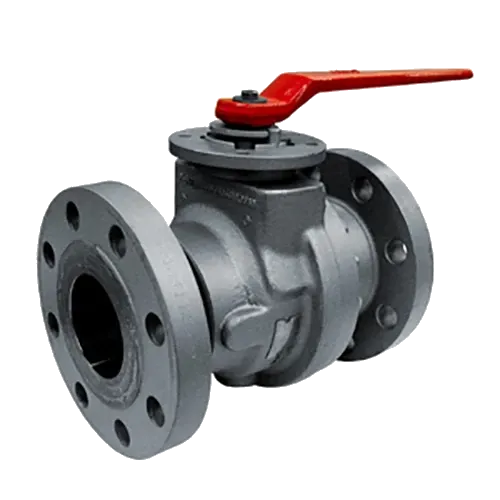

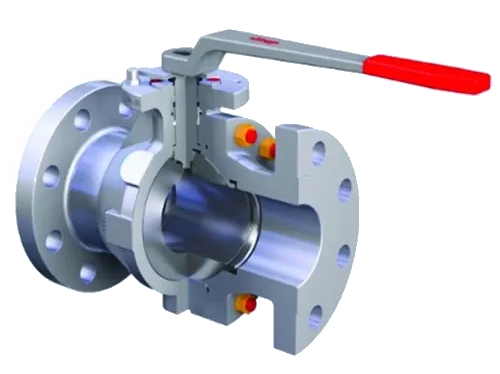

Argus™ FK75C Floating Ball Valve
A floating ball valve designed for industrial isolation service, offering reliable shutoff performance with emission-controlled stem sealing.
ASME B16.34 compliant (PED 97/23/EC optional)
Fire-safe per ISO 10497
ISO 15848 fugitive emission compliant
Soft or metal seated configurations
Anti-static and blowout-proof stem
Pressure Class 150–600
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Water (Wastewater)
Oil & Gas (Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Mining

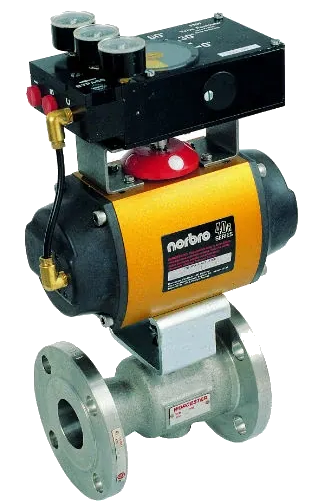

CPT Floating Control Ball Valve
The CPT Floating Control Ball Valve is a compact rotary control valve in three-piece and flanged design that offers bubble-tight shutoff and throttling control.
ANSI/ASME B16.34 compliant
Characterized control seats available
ISO 5211 actuator mounting
Class 150–600
Metal or reinforced PTFE seat options
General Industries (Pulp & Paper, Steel & Primary Metals, Food & Beverage, Corn Wet Milling & Ethanol, Other Industries)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Water (Water Management, Wastewater, Agriculture & Irrigation, Flood Control System)
Oil & Gas (Downstream Processing)
Power (Conventional Steam)
Mining

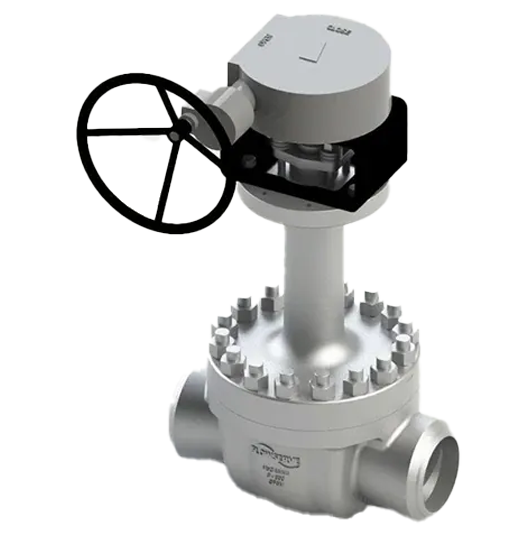

McCANNA Cryogenic Ball Valve
A floating cryogenic ball valve designed for low-temperature service requiring extended bonnet configuration and bubble-tight shutoff.
- Environmental and regulatory compliance made possible by design engineered to meet ISO 15848, ASME B16.34, BS 6364, MSS SP-134, MESC SPE 77/200, ASME B16.10 and API 6D specifications
- Easy in-line maintenance via top-entry design
- Simple and cost-effective to automate due to quarter-turn operation and low-torque seat profiles
General Industries (Other Industries)
Chemicals (Basic (Organic & Inorganic), Biofuels)
Water (Agriculture & Irrigation)
Oil & Gas (Downstream Processing)

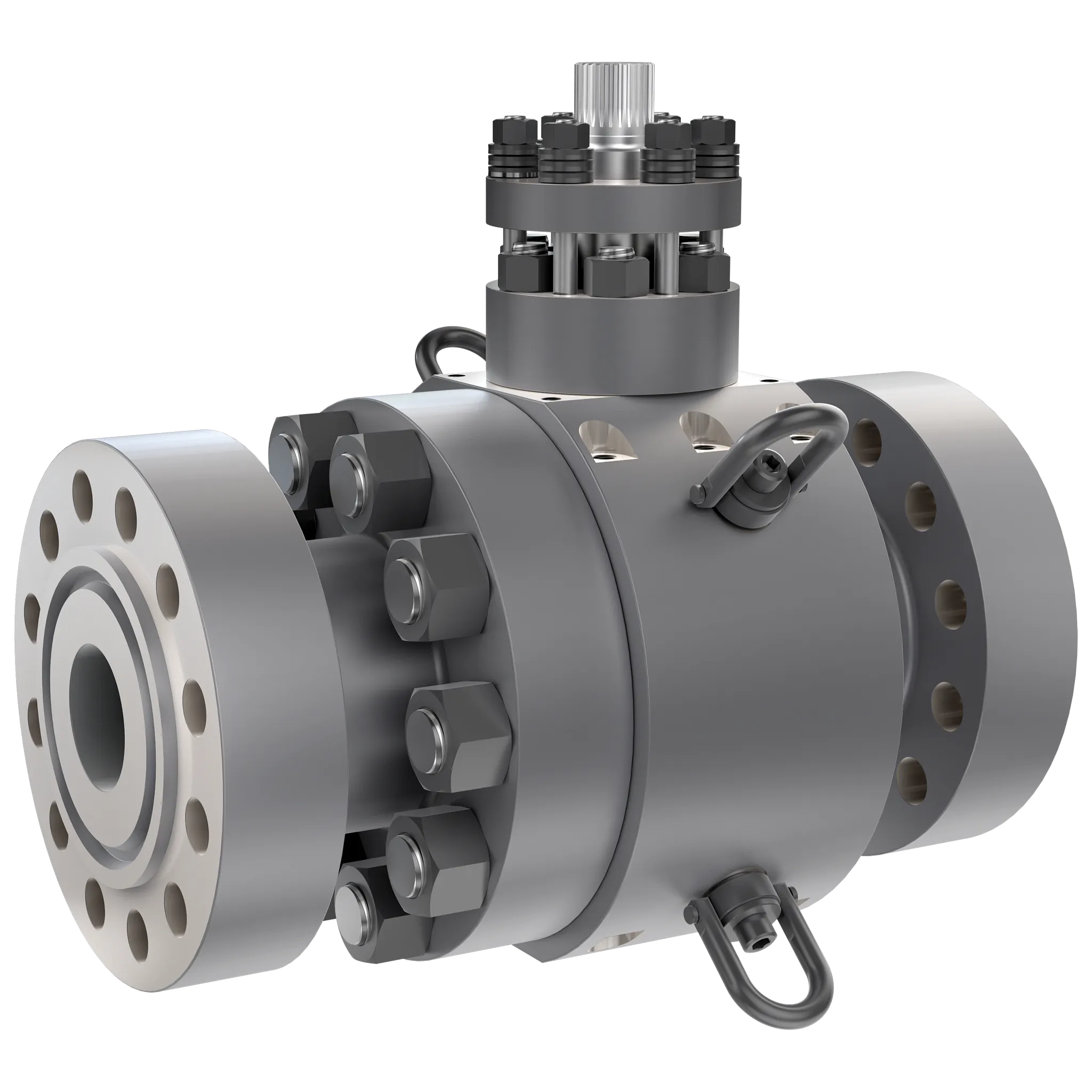

Argus™ FK75F Metal-Seated Floating Ball Valve
A severe-service metal-seated floating ball valve designed for high-temperature and high-pressure isolation in demanding applications.
API 608 compliant
ISO 15848-1 fugitive emission compliant
API 607 fire-safe
Metal-to-metal seating
Pressure Class Range: Class 150, 300, 600, 900, 1500, 2500 (For Class 4500, please consult factory)
Temperature capability -29°C to 538°C
Materials: Carbon Steel A105/A350 Grade LF2 / Stainless Steel A-182 F316/A182 F347H / Titanium / Duplex F51 / Inconel / Hastelloy
(Other materials available on request)
Power (Conventional Steam, Combined Cycle, Concentrated Solar Power (CSP))
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Hydrogen, Upstream Exploration & Production)
General Industries
Mining

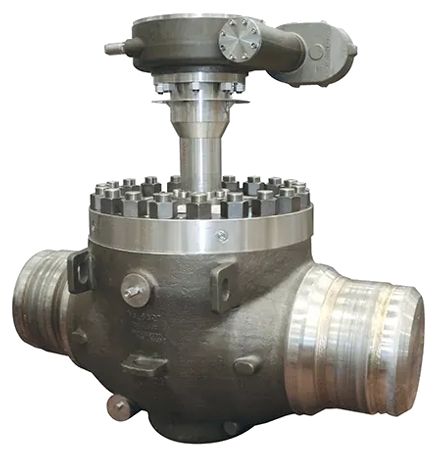

Trunnion Mounted Ball Valves
Trunnion mounted ball valves are built for large-bore, high-pressure applications where stability, low operating torque, and dependable isolation are non-negotiable. By anchoring the ball at both the top and bottom, these valves reduce torque and mechanical stress, providing tight shut-off, longer service life, and easier actuation in demanding oil & gas, petrochemical, power, and industrial systems.

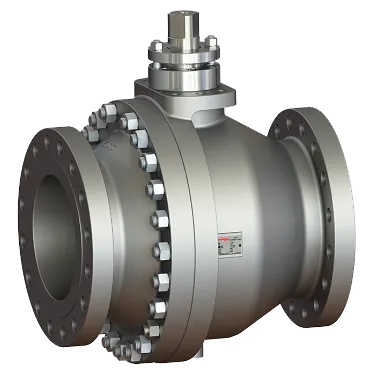

Argus™ FK76M Trunnion Mounted Ball Valve
A full-bore trunnion-mounted ball valve designed for high-pressure industrial and pipeline applications.
ASME B16.34 compliant
API 6D compliant
ISO 15848 fugitive emission compliant
Fire-safe per API 607
Pressure Class Range: Class 150–900
Power (Nuclear, Conventional Steam, Combined Cycle, Biomass & MSW, Geothermal)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Mining
Water (Water Management, Wastewater, Agriculture & Irrigation, Flood Control System)
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Argus HK35 Trunnion Mounted Ball Valve
The Argus HK35 has all the benefits of the FK76M in a high-pressure design. It is designed to perform in severe conditions where compliance to the highest demands in tightness for leak rate and fugitive emission is mandatory. It is designed to meet API-6D, ANSI B16.34 and BS 5351.
High-Pressure & Severe Service Capability — Built for demanding service where pressure class and performance requirements exceed typical trunnion valves.
ANSI/API & International Standards — Designed and tested to API 6D, ANSI B16.34, and BS 5351 for global process system compatibility.
Split-Body Trunnion Design — Trunnion mounted ball with anti-blowout stem and cavity relief for stable sealing and low operating torque.
High Tightness & Emissions Compliance — Seat design targeting FCI 70-2 Class VI and stem sealing that supports fugitive emission standards such as ISO 15848 and TA-Luft.
Durability Enhancements — Optional chemical coatings and high-performance claddings extend valve life and reduce maintenance in harsh environments.
Flexible Service Options — Available with flushing systems, oxygen service designs, special alloys, and extended bonnets for temperature extremes.
General Industries (Other Industries)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Water (Water Management, Wastewater, Agriculture & Irrigation, Flood Control System)
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
Power (Nuclear, Conventional Steam, Geothermal, Combined Cycle, Biomass & MSW)
Mining

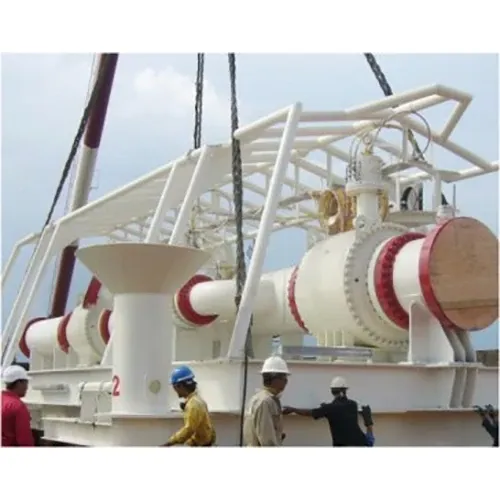

Valbart VW1 Trunnion Mounted Ball Valve
A welded-body trunnion-mounted ball valve designed for pipeline isolation and double block and bleed capability.
API 6D compliant
Fully welded forged body

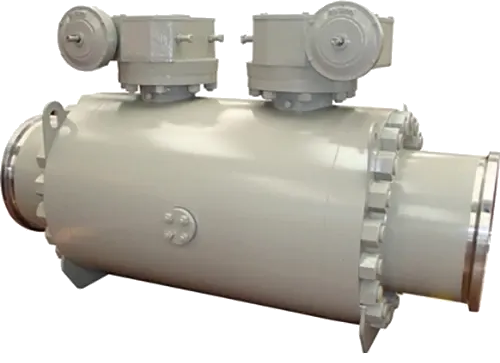

Double block and bleed capability
Fire-safe per API 6FA / API 607
NACE MR0175 compliant
Pressure Class 150–2500
Oil & Gas (Other Industries)
General Industries (Midstream Transportation, Downstream Processing)

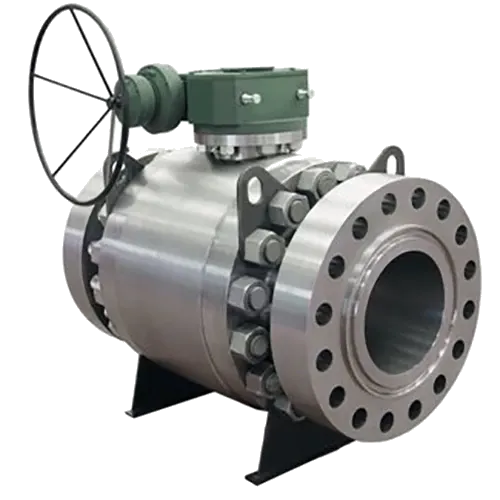

Valbart VB2 and VB3 Trunnion Mounted Ball Valve
A bolted-body side-entry trunnion ball valve designed for pipeline and wellhead service requiring repairable construction.
API 6D and API 6A compliant
Fire-tested per API 6FA / API 607
NACE MR0175 compliant
Double block and bleed configuration
Anti-static and blowout-proof stem
Pressure Class 150–2500
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Subsea Trunnion Mounted Ball Valve
A trunnion-mounted ball valve engineered for subsea applications requiring remote operation and high external pressure resistance.
API 6DSS compliant
Hyperbaric tested
ROV-operable configuration
Metal or soft seated options
Corrosion-resistant materials
Class 150–2500
- Oil & Gas
Valbart VB2 and VB3 Trunnion Mounted Ball Valve
A bolted-body side-entry trunnion ball valve designed for pipeline and wellhead service requiring repairable construction.
API 6D and API 6A compliant
Fire-tested per API 6FA / API 607
NACE MR0175 compliant
Double block and bleed configuration
Anti-static and blowout-proof stem
Class 150–2500
Oil & Gas
General Industries
Valbart VB2 and VB3 Trunnion Mounted Ball Valve
The Valbart VB2 and VB3 are repairable, bolted body, side-entry, trunnion-mounted ball valves featuring a fixed ball and floating seat rings. They are compliant with API 6D and 6A.
API 6D compliant
Fire-safe per API 607
Extended bonnet configuration
Cryogenic sealing design
Class 150–2500
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Argus™ FK76C Trunnion Mounted Ball Valve
A split-body trunnion-mounted ball valve designed for reliable shutoff with low emissions performance.
ASME B16.34 compliant
ISO 15848-1 fugitive emission compliant
API 607 fire-safe
ANSI/FCI 70-2 Class V shutoff
Class 150–300
Power (Nuclear, Conventional Steam, Combined Cycle, Biomass & MSW, Geothermal)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Mining
Water (Water Management, Wastewater, Agriculture & Irrigation, Flood Control System)
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Top Entry Ball Valves
Top entry ball valves are designed with a single-body construction and removable top bonnet that allows critical internal components, the ball, seats, and seals, to be serviced without removing the valve from the pipeline. This configuration not only enhances structural integrity and reduces potential leak paths, but it also significantly lowers maintenance time and downtime in large-bore, high-pressure, and continuous-operation process environments where uptime and safety are paramount.
Valbart Top Entry Ball Valves
Valbart top entry ball valves are in-line repairable and ensure bi-directional sealing with two independent floating seats. They feature a double block and bleed, fire safe design and an anti blow-out stem.
API 6D compliant
Fire-safe per API 607
Extended bonnet configuration
Cryogenic sealing design
Class 150–2500
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
General Industries (Other Industries)
Floating Ball Valves - McCANNA (Various Configurations)
The McCANNA Floating Ball Valve is a top entry ball valve.
- Wedge Seat Design
- Low Torque
- Wide Range of Materials
- Severe Applications
- In-Line Repair
- Pressure Class Range: 150 to 1500
General Industries (Other Industries)
Chemicals (Basic (Organic & Inorganic), Biofuels)
Water (Agriculture & Irrigation)
Oil & Gas (Downstream Processing)
Top Entry Ball Valves - McCANNA
A top-entry ball valve designed for process industries requiring inline serviceability and high cycle performance.
ASME B16.34 compliant
API 608 compliant
ISO 15848 fugitive emission compliant
Fire-safe per API 607
Class 150–1500
General Industries (Other Industries)
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels)
Water (Wastewater)
Oil & Gas (Midstream Transportation, Downstream Processing)
Power (Nuclear, Conventional Steam, Combined Cycle, Biomass & MSW)
Rising Stem Ball Valves
Rising stem ball valves combine the quick quarter-turn action of a traditional ball valve with a unique rising stem mechanism that lifts the ball before rotation, preventing friction and wear on sealing surfaces while providing visual indication of valve position. This design delivers tight shut-off, low operating torque, and extended service life in demanding and frequent-cycling applications such as molecular sieve switching, emergency shutdowns, and high-pressure isolation where conventional ball valves can struggle.
Valbart RSBV Rising Stem Ball Valve
Valbart RSBV Rising Stem Ball Valves are the oil and gas industry’s choice for applications requiring a mechanically energized metal or soft seat to prevent losses from process contamination or material leakage. The are ideal for frequent cycling.
API 6D compliant
Fire-safe per API 6FA / API 607
ISO 15848 fugitive emission compliant
Class VI shutoff
Pressure classes 150–2500
- Reduced or full bore
- Outside screw and yoke for adjusting of stem packing
- Self-cleaning closure member
General Industries (Other Industries)
Chemicals (Basic (Organic & Inorganic), Biofuels, Petrochemicals)
Water (Wastewater, Agriculture & Irrigation)
Oil & Gas (Upstream Exploration & Production, Midstream Transportation, Downstream Processing)
Power (Conventional Steam)
Lined Ball Valves
Lined ball valves are a specialized class of isolation devices designed to protect internal valve surfaces from corrosion, chemical attack, and abrasive media by incorporating a fluoropolymer or other high-performance lining material across the internal flow path. The lining, often PTFE, PFA, or similar fluoropolymers, creates a chemically resistant barrier that extends valve life, reduces maintenance, and improves reliability in aggressive process environments where standard metal valves would quickly deteriorate. This makes lined ball valves particularly valuable in chemical, water treatment, semiconductor, and other industries handling highly corrosive or high-purity fluids.
AKH2.2 Lined Full Port Ball Valve
The AKH2.2 Lined Full Port Ball Valve is a two-piece lined ball valve which offers high safety factors, high stability, rigidity and eliminates a potential leak path.
DIN EN 1092-2 / ASME B16.5 compliant
PTFE seat options
Anti-blowout stem
Anti-static design
PN10–16 / Class 150
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AKH2 Lined Ball Valve
Designed to reduce energy and pumping costs, the Atomac AKH2 two-piece, full-port design minimizes pressure losses and increases flow capacity.
DIN EN 558 compliant
PTFE seat options
Anti-static design
PN10–16 / Class 150–300
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AKH2A Lined Ball Valve
The AKH2A is a lined full port ball Valve, short pattern that offers the same benefits as the AKH2 at reduced space and weight. It was designed per ASME B16.5 Class 150 flange dimensions and ASME B16.10 face-to-face dimensions.
ASME Class 150 flanged
PTFE seat options
Short-pattern face-to-face
ISO 5211 mounting
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AKH3 Lined Ball Valve
A reduced-port lined ball valve delivering reliable shutoff in corrosive service environments.
ASME B16.5 compliant
PTFE seat options
Blowout-proof stem
PN10–16 / Class 150
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AKH5 Lined Ball Valve
The AKH3 is an ANSI B16.10 short-pattern, reduced-port, lined ball valve. The floating ball design ensures bubble-tight shutoff.
Mg-PSZ ceramic internal components
Class IV shutoff
PN16 / Class 150
Full bore design
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AKH7-KP Lined Ball Valve
A lined ball valve designed for installation in glass piping systems.
FEP / PFA lining
Glass piping compatible dimensions
Anti-static and blowout-proof stem
PN10–16
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AKH8 Lined Ball Valve
Integral ball-stem design
Full port configuration
PTFE seat options
PN10–16 / Class 150
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
AMP3 Lined Ball Valve
A three-way fluoropolymer-lined ball valve designed for corrosive diverter service.
L-port or T-port configurations
PTFE seat options
DIN EN 1092-2 / ASME B16.5 flanged
PN10–16 / Class 150
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
Fully-Lined Tank Drain Lined Ball Valve
A tank-bottom drain valve with full fluoropolymer lining for corrosive storage applications.
Oversized flush tank flange
PTFE lining
PN10–16 / Class 150
Spark-tested lining integrity
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Petrochemicals)
Oil & Gas (Downstream Processing)
Atomac AKH3.2 Lined Ball Valve
A fluoropolymer-lined ball valve designed for corrosive service with certified fugitive emission performance.
API 641 certified
ISO 15848-1 certified
ASME B16.5 compliant
Temperature range −60°C to 200°C
Class 150
Chemicals (Basic (Organic & Inorganic), Specialty (Fine & Consumer), Biofuels, Pharmaceutical, Petrochemicals)
Water (Wastewater)
Oil & Gas (Downstream Processing)
General Industries (Pulp & Paper, Steel & Primary Metals, Food & Beverage, Other Industries)
Mining
Contact a Dedicated Accutech Representative
Accutech has developed an extensive product offering through partnerships with industry leading manufacturers. With extensive experience in compressed air and fluid processing, count on us to meet your needs while improving your facility’s operation and efficiency.
