Calibration
Some of the most widely used pressure, temperature, and process calibration equipment in the world is made by AMETEK Sensors, Test & Calibration for a range of uses and sectors. Digital test gauges, reference recorders, deadweight testers, and a range of pneumatic and hydraulic pressure sources are among our pressure apparatus. High-precision dry-block calibrators, portable indicators, and reference sensors are examples of temperature equipment. Multifunction calibrators, multi-scanners, and mA loop calibrators are among our process calibration tools. We have the tools to make your job easier, no matter where you work.
M1 Digital Pressure Gauge
The m1 digital pressure gauge maintains 0.2% reading accuracy between -10 and 50°C. Accuracy is not significantly impacted by temperature, vibration, overpressure, lowering, or abrupt pressure fluctuations. There is a 30 psi digital manometer available.
One broad range m1 digital pressure gauge can replace up to five 0.25% mechanical gauges with 0.2% reading accuracy.
• 2-Year recommended calibration interval
• Battery life up to 3 years continuous use
• Bright backlit display
• Easy to read extra-large numbers
• Protective boot included
• Shifts everyday wear to a replaceable CPF adapter
Dual Display XP3i
The XP3i Digital Pressure Gauge is renowned for its strong construction and remarkable accuracy. You can now view more of what important directly on the screen thanks to the new Dual Display (-DD) version.
You can examine live pressure together with other metrics like peak, average, tare, or rate of change on the second, customized display line. Faster diagnostics, better visibility, and less time spent navigating menus or consulting different equipment are the results of this.
Whether you’re performing PSV testing, gas mixing, or dynamic pressure monitoring, the XP3i -DD gives the real-time data you need to work smarter and more efficiently.
- Ranges up to 15 000 psi
- Marine grade enclosure resists corrosion (MIL-STD 810)
- Accuracy not affected from -20 to 50°C (increased range from the XP2i)
- Replaces 5 or more test gauges
- Fast pressure safety valve (PSV) mode
- Easy to use – No Menu. No Manual? No Problem!
- Now with Bluetooth communication standard

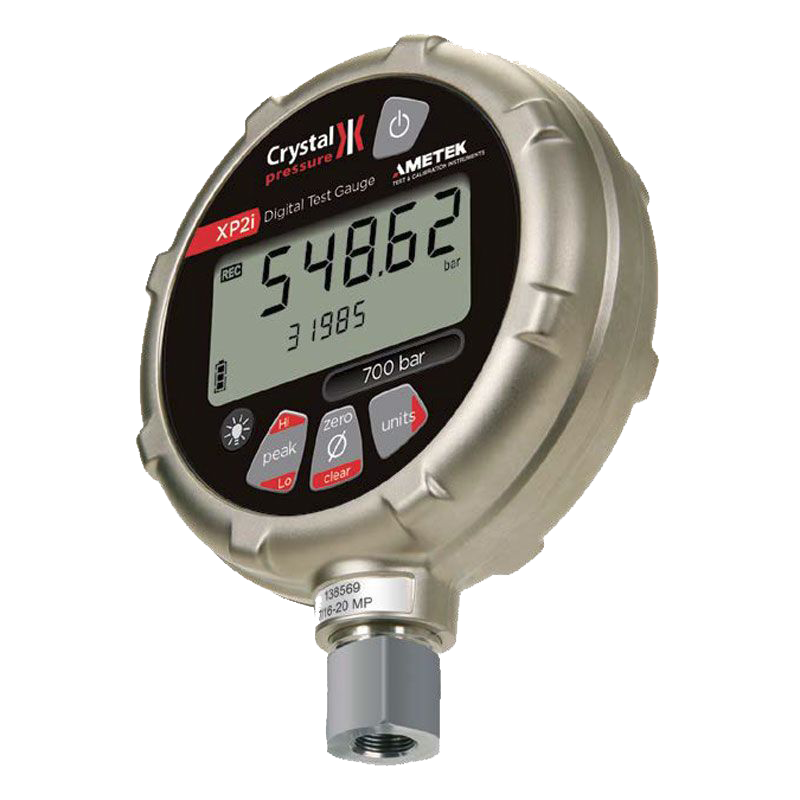

XP2i Digital Pressure Gauge
- Maximum pressure control range to 15,000 psi (1,000 Bar)
- Interchangeable pressure module
- Oil and water versions available
- Accuracy of 0.02%FS, 0.01%FS or 0.01%RD
- Dual-range from -15~3,000 psi (-1~200 Bar ) to 0~15,000 psi (0~1,000) Bar
Control stability 0.005%FS - Ultra-High speed pressure generation and control
- No external pressure source required
- Control using internal or external pressure modules
- Contamination
- Prevention System (CPS) (ADT793 optional)
LAN, USB, RS232, and - Ethernet communication
- External reservoir support
- Easy maintenance
- Emulation mode

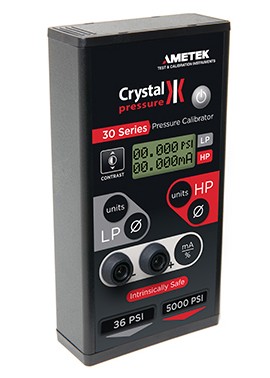

30 Series Pressure Calibrator
Consider transporting a large-scale calibration laboratory’s capability. The 30 Series digital pressure calibrator can help you do that. Because of its lightweight and compact design, this wide-range digital pressure calibrator provides laboratory-grade accuracy in a device that fits neatly in your shirt pocket. Whether in the lab or the field, the 30 Series offers the precision and reliability to do the assignment perfectly
- High-Precision Measurements
- Damage-Resistant
- Milliamps Indication for Transmitter Calibration
- User-Friendly Operation
- Battery Operated for Field Use
- Compact and Lightweight Design
- Laboratory Accuracy in Outdoor Conditions
HPC40 Series Pressure Calibrator
When precision is essential, the HPC40 Series handheld pressure calibrator is the perfect tool. As the first pressure and mA loop calibrator in history to be fully temperature compensated from -20 to 50°C, the HPC40 Series sets a new standard in calibration technology. Whether you are measuring pressure, current, voltage, or temperature, this calibrator dependably yields accurate results under a wide range of circumstances, making it an essential tool for professionals in a variety of industries.
- Unmatched Accuracy
- Versatile Pressure Measurement
- Advanced “Non-Menu” Interface
- Measure and Source mA with Flexible Power Options
- High-Accuracy Thermometer with “True Ohm” Technology
- Store and Recall Screens
- Flexible Power Options

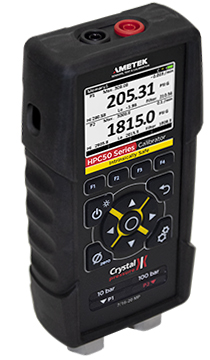

HPC50 Series Pressure Calibrator
To expand on the success of its predecessor, the HPC40, the HPC50 series offers several notable improvements, such as a longer battery life, a more advanced display, an extra external module connector, and integrated safety features. This dual pressure calibrator may be used in a range of temperatures, from -20 to 50°C, because it is fully temperature compensated.
- Exceptional Accuracy
- Versatile Measurement Capabilities
- Advanced Simplicity with a “Non-Menu” Interface
- Expanded Functionality with External Modules
- Measure and Sink mA and V with High Accuracy
- Store and Recall Previously Used Screens
- Fully Temperature Compensated
nVision Reference Recorder
Your One-Stop Calibration Tool. For professionals who demand the finest, the nVision reference pressure recorder is indispensable because it is accurate enough to replace a conventional deadweight tester, durable enough to endure challenging conditions, and portable enough to use anywhere.
- Unmatched Accuracy and Versatility
- Rugged Design for Extreme Conditions
- Large Data Storage and Fast Sampling Rate
- User-Friendly Interface and Advanced Functionality
- Temperature Compensation for Accurate Results
- Calibration Certificate Included
- Replaceable CPF Adapter for Extended Life

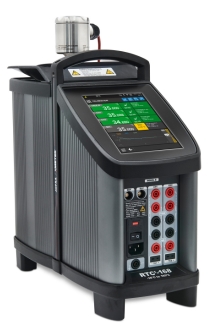

RTCt Reference Temperature Calibrator
The RTCt temperature calibrator is a significant improvement in terms of flexibility and use. Expanded remote connectivity choices, dual sensor input capabilities, and a larger, customisable touchscreen display are just a few of the user-friendly improvements that the new RTCt model offers, building on the popularity of the RTC. The RTCt is a great option for professionals looking for a reliable, adaptable, and user-friendly solution because we built it to simplify calibration operations.
The RTCt-168 and 159 temperature calibrators meet the needs of industries with strict calibration standards by introducing improvements in measurement accuracy, operational efficiency, and automation.
- Enhanced Display and Intuitive Touchscreen
- Expanded Connectivity for Remote Access
- Dual Sensor Inputs for Increased Efficiency
- Auto-Adjusting Graph Mode
- Upgraded Specifications and Functionality
PTC Professional Temperature Calibrator
Presenting the PTC Series professional temperature calibrators, which are skillfully designed to provide the field with laboratory-grade accuracy. These calibrators were created for professionals that need a dependable and effective temperature calibration solution. The PTC Series combines great precision, speed, stability, and a wide temperature range into a sturdy, portable gadget. This series is ideal for sectors where accurate temperature calibration is essential, such as food processing, oil and gas, and pharmaceuticals.
- Active Dual-Zone Temperature Control
- Wide Temperature Range and High Accuracy
- Fast Cooling and Heating Capabilities
- User-Friendly Interface and Enhanced Functionality
- Portable and Durable
- Comprehensive Calibration Software
CTC Compact Temperature Calibrator Series
Experience Unmatched Precision and Efficiency with the CTC Series Compact Temperature Calibrators. The CTC Series compact temperature calibrator is the ultimate solution for professionals who require fast, accurate, and reliable temperature calibration on-site. Designed with ease of use and functionality, the CTC Series offers superior performance over traditional liquid bath systems. It is the preferred choice for industries that demand precision and portability, such as oil and gas, pharmaceuticals, food processing, and HVAC. Whether you need to calibrate thermocouples, RTDs, or other temperature sensors, the CTC Series delivers reliable results with its advanced dry block technology.
- Wide Temperature Range and High Accuracy
- Fast and Efficient Operation
- User-Friendly Interface and Advanced Features
- Portability and Durability
- Versatility with Long Sensors and External Reference Input
- Stability in Power Supply Variations
ETC Series – Easy Temperature Calibrators for Fast Field Testing
The ETC Series is the ideal dry block temperature calibrator when time is the critical factor and the highest accuracy is not a requirement. The block heats up to 100°C per minute and stabilizes in just 3 minutes! The small size and light weight, fit perfectly in a tool box, making it the perfect field calibrator to verify sensors in difficult to reach places.
Rugged construction, featuring stainless steel and rubber side panels, make the instrument suitable for many years of service in an industrial environment.
- Temperature range from -10 to 400°C (14 to 752°F) with 3 models
- Accuracy to ± 0.5°C and Stability to ± 0.05°C
- Time saving fast cooling and heating times
- Easy-to-read multi-information display
- Customizable stability checkmark with countdown timer
- Set exact temperature desired to a resolution of 0.1°C

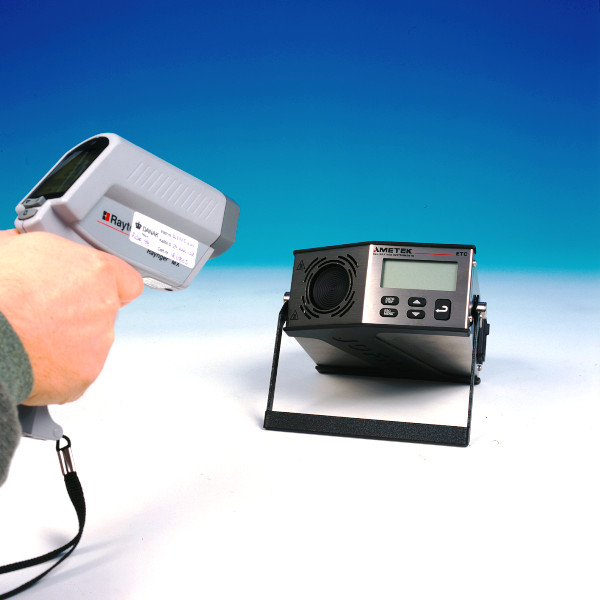

ETC 400R, small lightweight IR calibrator
Lightweight and easy to carry
Note: The ETC-400R Series has unique features and includes other models such as the ETC-125 and ASC-400
ETC-400R Features:
- Temperature range from 28 to 400°C (82 to 752°F)
- Accuracy to ± 0.5°C and Stability to ± 0.3°C
- Time saving fast cooling and heating times
- Easy-to-read multi-information display
- Customizable stability checkmark with countdown timer
- Set exact temperature desired to a resolution of 0.1°C
small lightweight IR calibrator - Lightweight and easy to carry

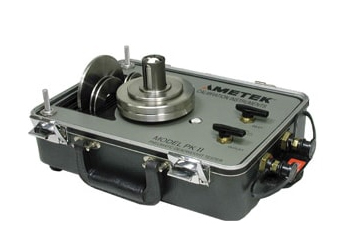

PK II Deadweight Tester
Whether you’re working in a lab or the field, we created the PK II floating ball type pneumatic dead weight tester to provide accurate and trustworthy pressure readings. This primary standard tool is an invaluable resource for professionals who need precise pressure calibration for their applications since it is designed to be safe, easy to use, and consistently gives high-accuracy readings.
- High-Precision Calibration for Critical
- Applications:
Exceptional Accuracy - Versatile Measurement Ranges
- Small Incremental Weight Sets
Type T Deadweight Tester
The Type T tester is a dead weight tester that provides laboratory accuracy in a device made to endure the daily strains of a manufacturing setting or an industrial setting. Every tester has a cylinder assembly and measuring piston of the re-entrant kind. As test pressures rise, this design helps to preserve accuracy by increasing float time and decreasing the rate of fluid leakage.
- Accuracy to 0.015% of reading
- Ranges to 15,000 psi
- Available in psi, kg/cm², bar, and kPa
- Small incremental weight sets available.
A dual volume pumping feature allows a large volume of fluid to be added at low pressures to fill the system and increase pressure rapidly. Once filled, switch to a smaller volume to easy pumping and provide finer control at higher pressures.
- Overhung weight carrier reduces side thrust and friction
- Over-pressure protection prevents piston damage
- 3- leg design with bulls-eye leveling system
- Single and dual column versions available to meet a wide variety of applications
Pneumatic Hand Pumps: T-900 Series (Systems A, B, and H)
The T-900 Series pneumatic hand pumps produce vacuum and pressure with ease and accuracy, enabling users to adjust the pressure applied with each stroke. Safe and easy operation is made possible by a dual pressure output and an integrated relief valve. The T-965 and T-975 can switch between pressure and vacuum generation with ease because they come with a button valve.
- Vacuum & Pressure Range: -25 inHg to 30 psi or -27 inHg to 580 psi
- Lightweight, compact design
- Two outlet ports
- Protected shuttle valve
- Fine adjust sensitivity to 0.01 psi
- Adjustable stroke
- T-975-CPF model includes CPF hose and fittings
Hydraulic Hand Pumps: T-600 Series (System C and H)
A lightweight, portable hydraulic hand pump made especially for high pressure applications is the T-600 Series. While a vent valve offers rapid, positive shut-off and pressure release, a fine adjust enables for exact pressure control. The pumps work with hydraulic fluids or petroleum-based oils.
- High Pressure Range: 0 to 5000 psi
- Easy to use fine adjust
- Two outlet ports
- Large reservoir
- Eliminate / Bleed air with CPF fittings
- T-620H-CPF includes CPF hose and fittings
